Original price was: ₹425,000.00.₹400,000.00Current price is: ₹400,000.00.

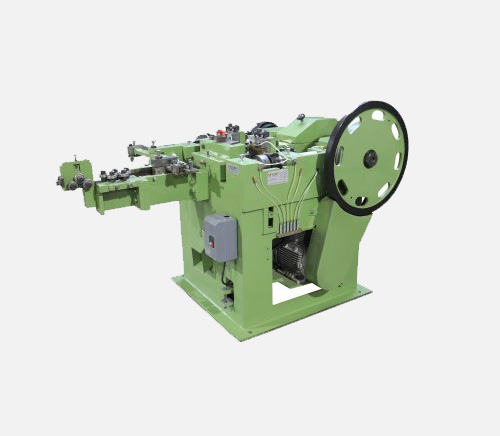

The Wire Nails Making Machine (SBI-NM-05) is a heavy-duty automatic machine designed for large-scale nail production. It efficiently converts steel wire into finished nails with precise cutting, heading, and shaping.
Engineered for durability and continuous operation, this model offers high production capacity with minimal maintenance. It is ideal for medium to large-scale construction material suppliers and hardware manufacturing units.
| Wire Dia | 10 to 6 swg ( 3 – 5 mm ) |
| Length Of Nails | 1.5″ to 5″ ( 35 –1 25 mm ) |
| Production | 125 to 150 pcs/per min. |
| Power Required | 5 hp x 1440 rpm |
| Weight | 2400kgs (approx.) |
Production Chart
| Model ( sbs-nm-05)
In 8 Hours |
Length Of Nails | ||||
| Wire Gauge
|
2” ( 50 mm ) | 3” ( 75 mm )
|
4” ( 100 mm )
|
5” ( 125 mm )
|
|
| 8 SWG (4.06 mm) | 350 Kg | 550 Kg | 770 Kg | 900 Kg | |
| 6 SWG (4.88 mm) | 500 Kg | 850 Kg | 1100 Kg | 1300 Kg | |
| 4 SWG (5.89 mm) | 750 Kg | 1100 Kg | 1600 Kg | 1600 Kg | |
| Weight | 2400 kg |
|---|
