Original price was: ₹245,000.00.₹220,000.00Current price is: ₹220,000.00.

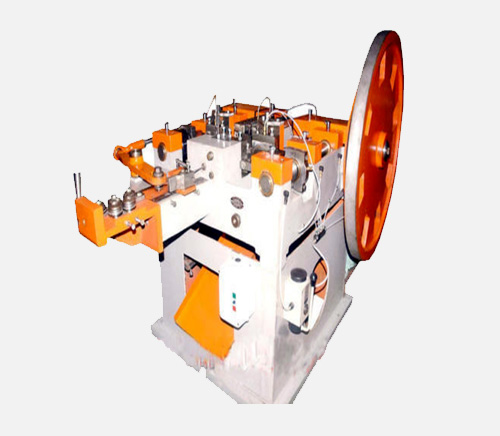

The Wire Nails Making Machine (SBS-NM-02) is a reliable and high-speed automatic machine designed for efficient wire nail production. It performs wire feeding, cutting, head forming, and shaping with high accuracy and minimal wastage.
Built with heavy-duty components and advanced engineering, this machine ensures smooth operation, long service life, and consistent production output. It is ideal for construction suppliers, hardware manufacturers, and small to medium-scale nail manufacturing units.
| Wire Dia | 16 swg to 12 swg (1.6 – 2.6 mm ) |
| Length Of Nails | ½” to 2″ ( 12 – 50 mm) |
| Production | 300 to 350 pcs/per min. |
| Power Required | 2 hp x 1440 rpm |
| Weight | 650kgs (approx.) |
Production Chart
| Model ( sbs-nm-02)
In 8 Hours |
Length Of Nails | ||||
| Wire Gauge
|
1” (25 mm) | 1¼ ” (30 mm)
|
1.5” (38 mm) | 2” (50 mm) | |
| 14 SWG (2.03 mm) | 90 Kg | 110 Kg | 130 Kg | 200 Kg | |
| 12 SWG (2.64 mm) | 175 Kg | 200 Kg | 225 Kg | 300 Kg | |
| Weight | 650 kg |
|---|
